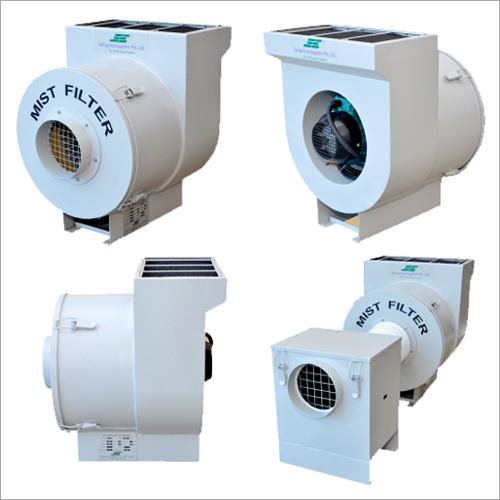

Centrifugal Mist Filter Collector

Centrifugal Mist Filter Collector
Centrifugal Mist Filter Collector
Send Inquiry
Product Code : SE-02
Brand Name : Saniya Envirosystem
Price And Quantity
  • Minimum Order Quantity
  • 2-3
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 70000 - INR
Product Description

Centrifugal Mist Filter of SEPL is another application of air purification system. Mist Filter designed to removes mists generated from machines by using synthetic coolants, water based emulsions, oil based. Centrifugal mist filter utilizes the principle of centrifugal action to separate oil, coolant mist. A perforated drum rapidly spinning, rotating by centrifugal force to trap mist and separate oil to reuse. The fine mist particles are impacted on filters and collected oil drain to reuse

Centrifugal mist filters/collectors used for applications:

  • Centrifugal mist filters used for oil
  • synthetic or water based coolant applications
  • Centrifugal mist filters applicable for Oil, Coolant grinding
  • CNC grinding
  • Tool grinding
  • Surface grinding
  • Cylindrical grinding
  • Centerless grinding
  • CNC lathe
  • CNC turning and milling operations
  • SPM M/C
  • High pressure component cleaning & washing air blowing booths

Centrifugal Mist filter compact designed up to capacity 1200 CFM/2040CMH.

  • Provide clean, healthy work environment
  • Uses four stage filters for high efficiency.
  • Use on oil based, synthetic coolants, water based emulsions operations.
  • Use on petroleum based cleaning &washing booths
  • Use on cutting oils

Technical Specification:

Model

SEPLCMF60

SEPLCMF80

SEPLCMF100

SEPLCMF120

Suction Capacity

600 CFM/1020CMH

800CFM/1360CMH

1000 CFM/1700CMH

1200 CFM/2040CMH

Input Voltage

415VAC/3PH/50Hz

415VAC/3PH/50Hz

415VAC/3PH/50Hz

415VAC/3PH/50Hz

Motor

1Hp

1.5Hp

2Hp

3HP


Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash Against Delivery (CAD)
  • Supply Ability
  • depend on order Per Day
  • Delivery Time
  • 1 Months
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Domestic Market
  • Maharashtra, All India
