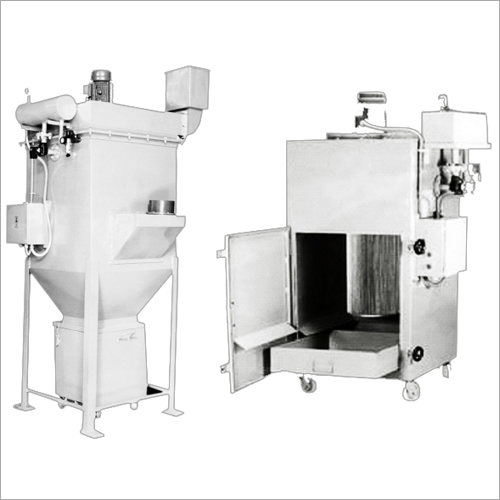

Industrial Dust Collectors

Industrial Dust Collectors
Industrial Dust Collectors
Send Inquiry
Product Code : SE-01
Brand Name : Saniya Envirosystem
Price And Quantity
  • Minimum Order Quantity
  • 2-3
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 1500000 - INR
Product Description

Dust Collector

SEPL design and manufacture dust collector to keep clean air in all industrial sectors in which air pollutants are collected, transported and separated. Innovative filter technologies and a systematic equipment design ensure optimal separation results. The SEPL dust collector is particularly suitable for separation of fine dust. Dust can be successfully separated, such as those created in metal processing, polymer processing, pharmaceutical and ceramic industries, as well as non-metallic minerals. The SEPL units are of modular construction in order to meet different requirements, such as dust characteristics or the volume of exhausted air. SEPL dust collectors are low-noise units allow for reliable 24-hour operation with constant air flow.

The dust contaminated air flows through the inlet into the filter unit. A baffle plate slows down and deflects the dust particles to protect the filter elements from direct impact. An air down-flow is created between the filter elements, allowing the dust particles to drop. A fan in the clean air chamber draws the polluted air through the filter elements, depositing the dust particles onto the filter surface. Because the filter elements are cleaned continuously by compressed air pulses during operation, the air flow remains constant. The cleaned air exits through the top of the unit and in most cases re-circulated into the working area. The separated dust falls into the dust collector containers.

The pulse cleaning cycle can be adjusted for each application by means of an integrated control unit. The air flow of the fan remains nearly constant. The cleaning operation is activated either by a differential pressure regulator while in operation, or by a programmable downtime cleaning cycle.

Dust collectors used for applications

  • Turning

  • Drilling

  • Milling

  • Brushing

  • Blasting

  • Carbon

  • Powder coating

  • Pharmaceuticals

Technical Specification:

Model

SEPLDC40

SEPDC60

SEPLCMF100

Suction Capacity

400 CFM/680CMH

60CFM/1020CMH

1000 CFM/1700CMH

Input Voltage

415VAC/3PH/50Hz

415VAC/3PH/50Hz

415VAC/3PH/50Hz

Motor

0.5Hp

1Hp

2Hp



Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash Against Delivery (CAD)
  • Supply Ability
  • depend on order Per Day
  • Delivery Time
  • 1 Months
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Domestic Market
  • Maharashtra, All India
